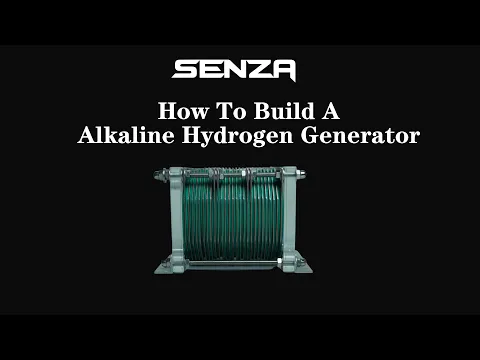

How To Build A Alkaline Hydrogen Generator In Video

Current : 50A
Voltage : 12V
Rate : 2L/min
Catalysts : KOH(We recommend the use of KOH, and we have tested that NAOH is more likely to corrode stainless steel plates.)
Transformers : It is recommended to use transformers with constant voltage and current. This is because when the temperature rises, the current also increases. This can easily overheat and cause damage to the stainless steel plate.
In principle, 3 stainless steel plates can also produce 2 L/min of hydrogen. But the lifetime is very short and the temperature is very high. Our proposed solution is (The diameter of the area involved in the reaction is 103mm)
1. Rate: 600 ml/min 15A, 12V, 3 plates
2. Rate: 1L/min 25A 12V, 6 plates
3. Rate: 2L/min 51A 12V, 9 plate, as well as a heat sink and a more advanced rubber ring.
How to build a PEM Hydrogen Generator : https://senzahydrogen.com/how-to-build-a-pem-hydrogen-generator.html
