SENZA SZPE-20000
PEM Hydrogen Generator

Hydrogen Production: 20000 ml/min

Max Hydrogen Purity: 99.995%+
Small Size
No Corrosion
High Efficiency
Just Need Pure Water

SENZA SZPE-20000
PEM Hydrogen Generator

Hydrogen Production: 20000 ml/min

Max Hydrogen Purity: 99.995%+
Small Size
No Corrosion
High Efficiency
Just Need Pure Water

Included Components

Below is a list of all components included with your purchase. Each item has been carefully tested to ensure efficient and reliable performance for seamless operation.

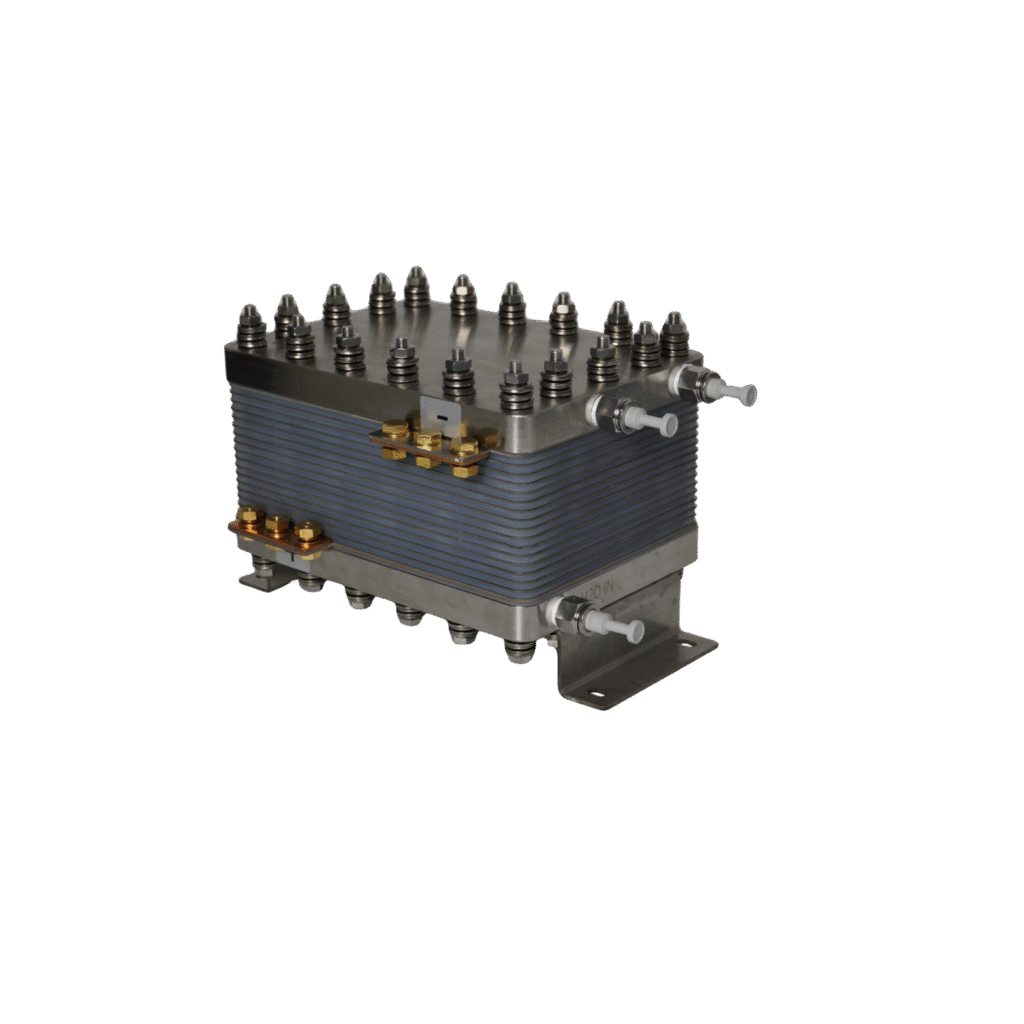

PEM Hydrogen Generator

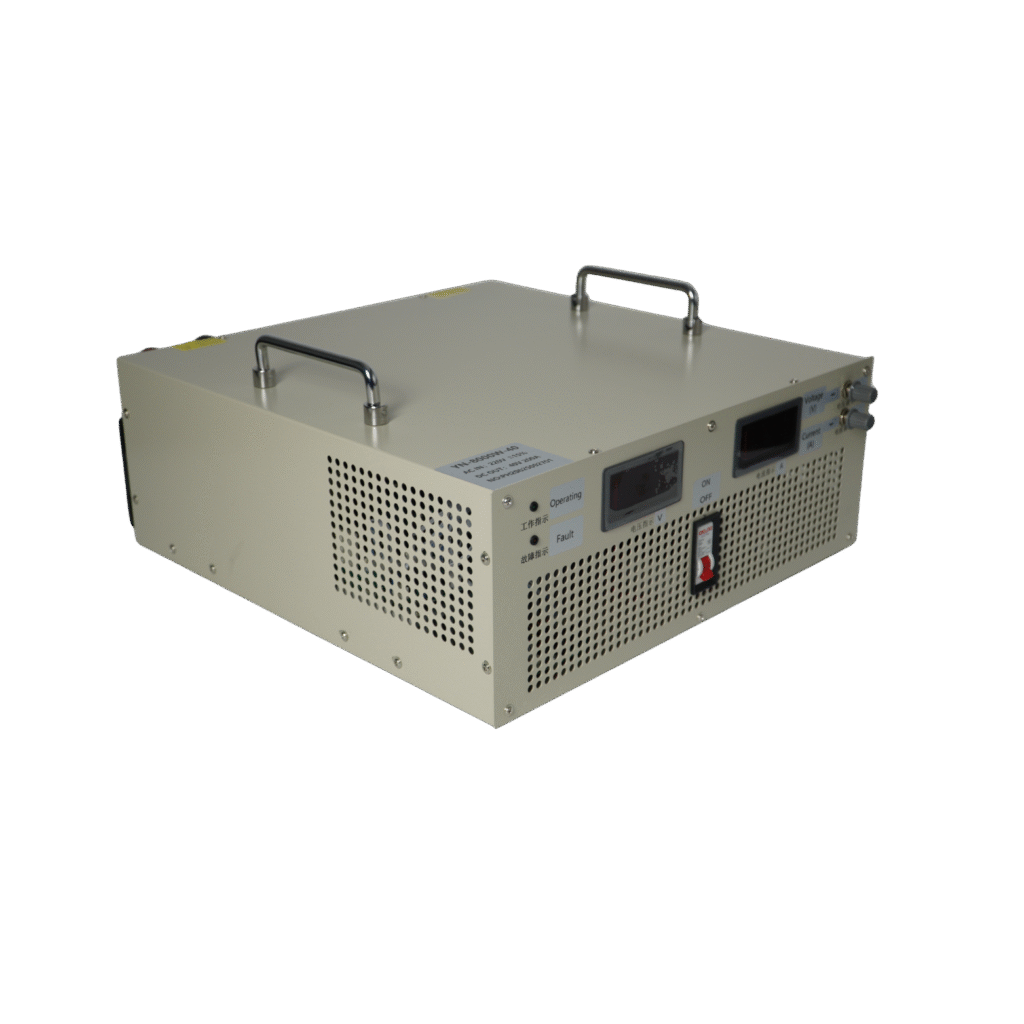

Transformer

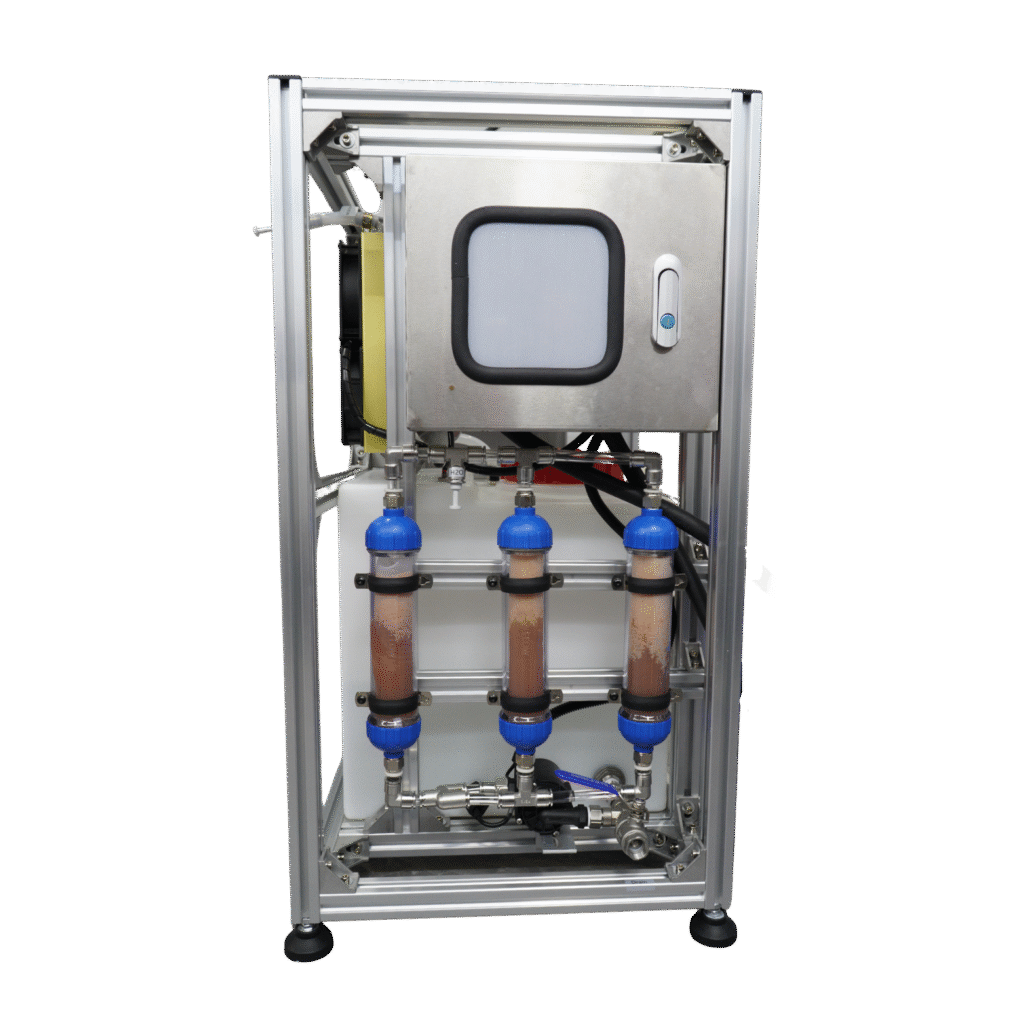

Water System Components

Features

  • Pydrogen production: 20000 ml/min
  • Max hydrogen purity: 99.995%+
  • Output Pressure: 0-0.3 MPa
  • DuPont N117 Proton Membrane
  • Platinum and iridium oxide coating
  • Titanium alloy electrode
  • 12-Month Warranty
  • 20000ml/min PEM Hydrogen Generator
  • Transformer
  • Integrated Tank
  • Installation Toolkit
  • Hydrogen production: 20000 ml/min
  • Stack : 16
  • Current : 180A
  • Voltage : 40V
  • Coating : IrO2 and Pt
  • Output Pressure: 0-0.3 MPa
  • Two modes: mixed hydrogen and oxygen output or separate output
  • Max hydrogen purity: 99.995%+
  • Water Quality Requirement: Purified Water or Distilled Water
  • Input Voltage: 220V AC
  • Operating Temperature: 5°C – 80°C
  • Logo and Private Label
  • Adjustable Hydrogen Production Function
  • Increased Hydrogen Production
  • Larger Water Tank
  • If you have any other customization needs, please contact us
